bladeRF board talks back (more or less) to a python program

I installed libusb0 (libusb-win32). With inf-wizard I managed to make the bladeRF board visible to Windows. When I connect the device I have a libusb-board called bladeRF!

The problem is, however, that libusb0.sys is a libusb 0.1 implementation.

Well, let's see if can find this device with a Python-program:
I found this snippet on the big Internet. Wish I saved the URL to give credit to the programmer!

#!/usr/bin/env python

import usb

for bus in usb.busses():
  for dev in bus.devices:
    print "Bus %s Device %s: ID %04x:%04x %s" % (bus.dirname,dev.filename,dev.idVendor,dev.idProduct,,30))

The output:

Python 2.7.3 (default, Apr 10 2012, 23:31:26) [MSC v.1500 32 bit (Intel)] on win32
Type "copyright", "credits" or "license()" for more information.
>>> ================================ RESTART ================================
Bus  Device : ID 1d50:6066 Nuand

This is encouraging!

From a USB-tutorial I copied:

# import usb.backend
# import usb.legacy
import usb.core
# import usb.util
# import usb.control

# find our device
dev = usb.core.find(idVendor=0x1D50, idProduct=0x6066)

# was it found?
if dev is None:
    raise ValueError('Device not found')
    print ('Device found')

    print 'len =', dev.bLength
    print 'bNumConfigurations =', dev.bNumConfigurations
    print 'bDeviceClass =', dev.bDeviceClass
    num = dev.idVendor
    num = "%#x"%(num)
    print 'idVendor = ', num
    #print 'idVendor = ', dev.idVendor
    num = dev.idProduct
    num = "%#x"%(num)
    print 'idProduct = ', num
    #print 'idProduct = ', dev.idProduct
    print 'bcdUSB = ', dev.bcdUSB
    print 'bcdDevice = ', dev.bcdDevice
    print 'iManufacturer = ', dev.iManufacturer
# set the active configuration. With no arguments, the first
# configuration will be the active one

And the output:

Device found
len = 18
bNumConfigurations = 1
bDeviceClass = 0
idVendor =  0x1d50
idProduct =  0x6066
bcdUSB =  768
bcdDevice =  0
iManufacturer =  1

Traceback (most recent call last):
  File "C:\Users\lonneke\python\", line 34, in <module>
  File "C:\Python27\lib\site-packages\usb\", line 547, in set_configuration
    self._ctx.managed_set_configuration(self, configuration)
  File "C:\Python27\lib\site-packages\usb\", line 92, in managed_set_configuration
    self.backend.set_configuration(self.handle, cfg.bConfigurationValue)
  File "C:\Python27\lib\site-packages\usb\backend\", line 437, in set_configuration
    _check(_lib.usb_set_configuration(dev_handle, config_value))
  File "C:\Python27\lib\site-packages\usb\backend\", line 384, in _check
    raise USBError(errmsg, ret)
USBError: [Errno None] libusb0-dll:err [set_configuration] could not set config 1: win error: De parameter is onjuist.


The problem seems to be that dev.set_configuration() needs an argument.

I think I have a version problem. I have libusb 0.1 on my Windows system.

I googled a lot and found a lot. The right search-arguments are: "libusb pyusb winusb".
In fact WinUSB is what I was looking for.

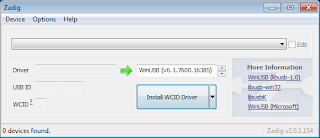

Then I found zadig:

I experimented with their zadig.exe
I hope I did not do something very stupid!
You can install WinUSB and also libusbK with that program.

My little python-program did not see the bladeRF board anymore. Luckily I could reinstall the old driver and try again.

This libusb 0.1 1.0 issue is very confusing. There is also a libusbK.
I just want to use PyUSB with my bladeRF board and probably need libusb1.0 for that?
I read something about legacy, backend, etc. A lot to study, I am afraid.

Perhaps now is the time to formulate a question in the bladerf forum...
